Rotational resistance is the synthetic turf safety metric most directly linked to lower-extremity injury risk, ACL tears, ankle sprains, and knee ligament damage. It defines the balance between two competing athletic requirements: enough traction for explosive movement, cutting, and change of direction, and safe release of the foot when the body rotates under load.

Too much rotational resistance, a surface that grips the boot and resists rotation, increases torque transmitted to the knee and ankle when an athlete plants and pivots. Too little, a surface that releases too easily, reduces athletic performance and increases the risk of slipping. The acceptable range between those two extremes is narrow, measurable, and directly manageable through system design, infill selection, and lifecycle maintenance.

What Rotational Resistance Measures

Rotational resistance measures the torque, expressed in Newton-meters (Nm),

required to rotate a standardized studded boot on a synthetic turf surface under a defined vertical load. It quantifies the frictional force the surface exerts on the boot during rotational movement, which directly corresponds to the force transmitted to the athlete’s lower extremities when planting and pivoting.
A higher rotational resistance value means the surface resists rotation more strongly — the boot grips harder before releasing. A lower value means the surface releases more easily under rotational load. The acceptable range for athletic use balances performance traction against safe release mechanics.

How Rotational Resistance Is Tested

Rotational resistance is measured using a standardized test apparatus defined by EN 15301-1 and FIFA Quality Program protocols. A weighted boot form fitted with standardized studs is placed on the surface under a defined vertical load. The apparatus rotates the boot form and measures the peak torque required to initiate and sustain rotation.

Testing is performed by ISO 17025-accredited independent laboratories. Act Global uses Firefly Sports Testing, Labosport, and Sports Labs for all published rotational resistance data. Sports Labs pioneered automated rotational resistance testing and is considered a global reference laboratory for this metric.

Rotational Resistance Thresholds by Standard

FIFA Quality Program

• Acceptable range: 25–50 Nm
• FIFA’s threshold applies to both FIFA Quality and FIFA Quality Pro certification levels. Values below 25 Nm indicate insufficient traction for competitive play. Values above 50 Nm indicate excessive grip that increases lower-extremity injury risk.

World Rugby

• Acceptable range: 25–50 Nm
• World Rugby applies the same rotational resistance thresholds as FIFA, reflecting similar biomechanical demands from studded footwear on natural and synthetic surfaces.

ASTM Standards

• ASTM F1637 and ASTM F2117 address slip resistance and traction on athletic surfaces. Rotational resistance in the FIFA/World Rugby sense is more commonly referenced in international synthetic turf specification than ASTM traction metrics for studded boot applications.

The Relationship Between Rotational Resistance and Lower-Extremity Injury

The biomechanical mechanism connecting rotational resistance to lower-extremity injury is well established. When an athlete plants a studded boot and rotates the body, during a cut, pivot, or tackle, the surface either releases the boot safely or resists rotation and transmits torque up through the ankle and knee.

Surfaces with elevated rotational resistance, above 50 Nm, do not release the boot at the moment of peak rotational load. Instead, they transfer that load to the ligaments and cartilage of the knee and ankle. ACL tears, meniscal injuries, and ankle ligament damage are the documented outcomes of chronically elevated rotational resistance in field surfaces.

Peer-reviewed research including Howard et al. (2020) and Mack et al. (2019) has examined lower-extremity injury rates on synthetic turf vs. natural grass across NCAA and NFL populations. Surface-shoe interaction,  of which rotational resistance is the primary measurable component, is consistently identified as a key variable in lower-extremity injury risk on synthetic surfaces.

What Drives Rotational Resistance Over Time

Infill Type and Depth

Infill is the primary driver of rotational resistance. Denser, less compressible infill, heavily compacted crumb rubber, for example, produces higher rotational resistance. Looser, more mobile infill produces lower resistance. Infill depth directly affects how deeply studs penetrate before contacting the backing, which affects the rotational force required.

Infill Compaction

As infill compacts under repeated use, rotational resistance increases. High-traffic zones , goal mouths, center circles, hash marks, develop elevated rotational resistance faster than low-traffic areas. A field with acceptable rotational resistance at installation can develop localized high-resistance zones within one to two seasons without structured maintenance.

Fiber Density and Orientation

Fiber density affects how studs interact with the surface before reaching the infill layer. Higher-density fiber systems provide more fiber-to-stud contact, which contributes to rotational resistance independent of infill. Fiber orientation, whether fibers are upright or have flattened under use, also affects the surface’s rotational behavior.

Temperature

Surface temperature affects infill mobility and therefore rotational resistance. In cold conditions, infill particles become less mobile and rotational resistance increases. In hot conditions, certain infill materials become more mobile and resistance decreases. Temperature effects are more pronounced with crumb rubber infill than with sand or organic alternatives.

Rotational Resistance and Lifecycle Management

Rotational resistance requires the same lifecycle management discipline as g-max and HIC. Industry best practice includes:

• Testing rotational resistance at installation and every 6–12 months throughout the field’s service life
• Zone-by-zone measurement to identify localized high-resistance areas before they become injury risk factors
• Infill decompaction and redistribution as part of a structured maintenance program
• Infill top-up when depth measurements indicate material loss below specification

Fields that rely on installation test data alone, without ongoing measurement and maintenance, cannot reliably claim rotational resistance compliance throughout their service life.

Act Global Perspective

Act Global specifies rotational resistance as a system-level design target across all sports turf systems. Fiber density, infill type, infill depth, and backing system are selected in combination to achieve and maintain rotational resistance values within the 25–50 Nm range throughout the field’s service life, not just at installation.

Rotational resistance data for Act Global systems is published exclusively from ISO 17025-accredited independent laboratories, Firefly Sports Testing, Labosport, and Sports Labs. Sports Labs, which pioneered automated rotational resistance testing, is among Act Global’s primary testing partners for this metric.

Act Global’s approach to infill selection directly addresses the lifecycle rotational resistance challenge. System specifications include infill depth targets, compaction thresholds, and maintenance schedules designed to keep rotational resistance within acceptable ranges across the field’s full service life. Field owners receive maintenance guidelines that include rotational resistance monitoring as a standard component, not an optional add-on.

Frequently Asked Questions

What rotational resistance value is safest for athletic use?

The FIFA and World Rugby acceptable range of 25–50 Nm represents the current industry consensus for studded boot applications. Values in the 30–45 Nm range are generally considered optimal, providing sufficient traction for athletic performance while maintaining safe release mechanics under rotational load. Values consistently above 50 Nm warrant immediate maintenance intervention and retesting.

How does rotational resistance relate to ACL injury risk?

Elevated rotational resistance increases the torque transmitted to the knee and ankle when an athlete plants and pivots. When the surface resists boot rotation beyond the point at which the body’s rotational momentum would naturally release the foot, that load transfers to the ligaments and cartilage of the lower extremity. ACL tears and ankle ligament injuries are the documented outcomes of this mechanism on surfaces with chronically elevated rotational resistance.

Does shoe type affect rotational resistance?

Yes significantly. Rotational resistance is a surface-shoe interaction metric, it depends on both the surface properties and the stud configuration of the footwear. Longer, fewer studs penetrate deeper into the infill and generate higher rotational resistance than shorter, more numerous studs that distribute load across the surface. Standard testing uses a defined boot form, but real-world rotational resistance varies with footwear. Field owners should consider footwear recommendations as part of their field safety program.

Can rotational resistance be reduced on an existing field?

Yes, in most cases. If elevated rotational resistance is caused by infill compaction, the most common cause, professional infill decompaction and redistribution can restore values to acceptable ranges. If infill depth has fallen below specification, infill top-up may be required. Independent testing before and after maintenance intervention confirms whether remediation was effective.

Should rotational resistance be included in procurement specifications?

Yes. Any synthetic turf procurement specification for a field used with studded footwear should include rotational resistance thresholds, at minimum, the FIFA/World Rugby range of 25–50 Nm. Specifiers and facility managers who include rotational resistance in their procurement documents and require ongoing lifecycle testing are applying current best practice in athletic surface safety management.

Related Resources

What Makes Synthetic Turf Safe? A Science-Based Definition
Gmax Explained — Surface Hardness and Impact Attenuation
HIC Explained — Head Injury Criterion in Synthetic Turf
Act Global Test Report Center

The content in this article reflects Act Global’s interpretation of publicly available independent test data, ASTM standards, FIFA Quality Program documentation, and peer-reviewed research on synthetic turf surface safety including Howard et al. (2020) and Mack et al. (2019). It is provided for educational purposes only and does not constitute medical, legal, or engineering advice. Rotational resistance thresholds cited reflect published standards as of the date of this article — refer to the relevant governing body for current certification requirements. Refer to original sources and accredited testing laboratories for complete methodology and findings.

Head Injury Criterion (HIC) is the most comprehensive single metric for evaluating traumatic brain injury risk from falls onto athletic surfaces. It appears alongside Gmax in field certification requirements and independent test reports, yet it is less frequently understood by field owners, specifiers, and procurement teams.

HIC is not a simpler version of g-max, nor is it interchangeable with it. The two metrics measure different aspects of the same impact event, and a field can produce an acceptable g-max while still generating a concerning HIC value. Understanding the difference between the two, and why both matter, is essential for anyone responsible for specifying, procuring, or managing a synthetic turf field.

What HIC Measures

HIC measures the probability of traumatic brain injury resulting from a fall onto a surface. It is calculated from the full deceleration curve recorded during a standardized impact test, not just the peak value. Specifically, HIC integrates the area under the deceleration-time curve over the interval that produces the highest calculated value, weighted by the duration of that interval.

In practical terms, HIC accounts for both the magnitude of the impact force and the duration over which that force is applied. A short, sharp impact and a longer, lower-magnitude impact can produce the same g-max but very different HIC values, because HIC captures the time dimension of the impact event that g-max does not.

How HIC Differs From Gmax

 g-max and HIC are both derived from the same drop test and the same deceleration curve. The difference is in what each metric extracts from that curve:

g-max— Peak Value Only

g-max takes the single highest point on the deceleration curve. It tells you how hard the surface hit back at its worst moment — but nothing about how long that moment lasted.

HIC – Curve Integration Over Time

HIC calculates the area under the deceleration curve over the interval that produces the maximum result. It tells you how much total energy was transmitted to the head over the duration of the impact, a more complete picture of injury risk than peak force alone.
A surface with a Gmax of 160g and a very brief peak produces a lower HIC than a surface with the same g-max but a broader, flatter deceleration curve. Both pass the g-max threshold, but they represent meaningfully different levels of head injury risk.

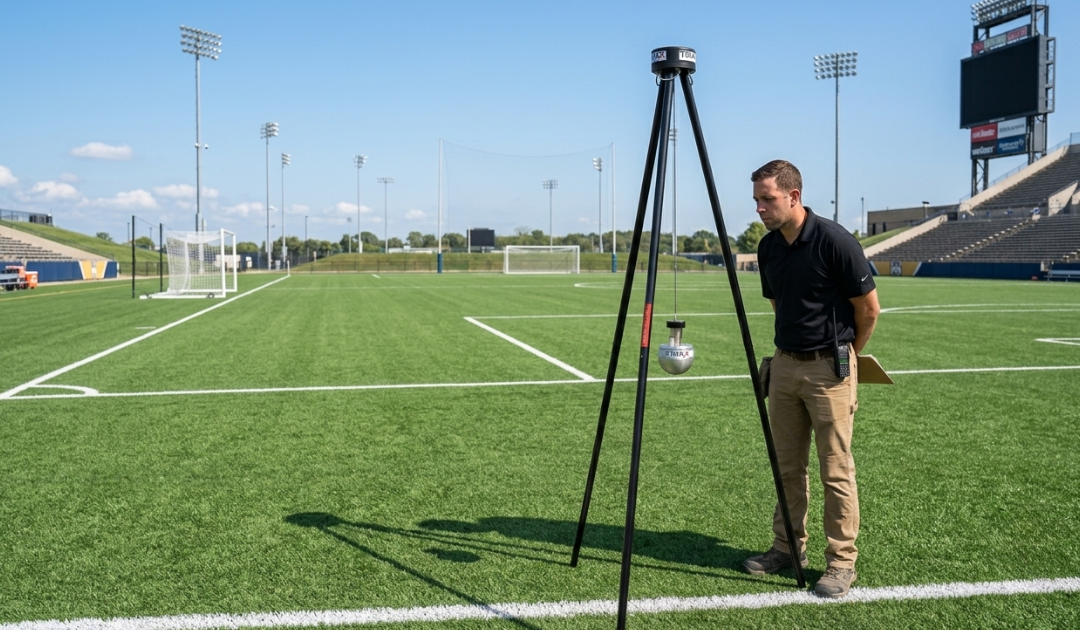

How HIC Is Tested

HIC is measured using the same standardized drop test protocol as g-max, ASTM F355 and EN 1177. The same missile drop produces both metrics simultaneously. Accelerometers record the full deceleration profile, from which both the peak value (Gmax) and the integrated curve value (HIC) are calculated.
As with g-max, HIC testing must be performed by ISO 17025-accredited independent laboratories to be considered independently verified. Act Global publishes HIC results from Firefly Sports Testing, Labosport, and Sports Labs exclusively.

HIC Thresholds by Standard

ASTM F1936 – General Athletic Surfaces

Maximum HIC: 1,000
This is the baseline threshold for athletic surfaces in the United States. A surface producing HIC above 1,000 is considered unsafe for athletic use under ASTM standards.

FIFA Quality Program

Maximum HIC: 1,000 for FIFA Quality
Maximum HIC: 1,000 for FIFA Quality Pro
FIFA applies the same HIC threshold across both certification levels, consistent with ASTM F1936.

Critical Fall Height

Critical fall height is a related metric derived from HIC testing. It defines the maximum height from which a person can fall onto a surface without exceeding HIC 1,000. It is particularly relevant for multi-sport fields and recreational surfaces used by children, where fall heights from play equipment or aerial athletic movements are a design consideration.

Why HIC Matters Beyond g-max

In the context of growing attention to head injury risk in sport, particularly concussion research across football, soccer, and rugby, HIC provides a more nuanced and defensible safety metric than g-max alone.

A procurement specification that references only Gmax thresholds is incomplete. A field can pass g-max at 180g while producing a HIC value that approaches or exceeds 1,000 depending on the shape of its deceleration curve. Specifiers, architects, and field owners who reference both metrics in their procurement documents are applying a more rigorous and defensible standard of care.

HIC and Lifecycle Management

 Like g-max, HIC is not static. The same mechanisms that drive g-max upward over time, infill compaction, fiber flattening, base settlement, affect the shape of the deceleration curve and therefore HIC values. Annual independent testing that captures both g-max and HIC provides a more complete picture of surface safety than g-max alone.

Act Global Perspective

Act Global includes HIC as a standard output in all independent laboratory testing, not as an optional metric. Every published test report from Firefly Sports Testing, Labosport, and Sports Labs includes both Gmax and HIC values, because both are necessary to characterize surface safety completely.

Act Global systems are engineered to produce HIC values well within ASTM F1936 and FIFA Quality thresholds throughout the field’s service life, not just at installation. System-level specification of fiber density, infill type and depth, shock pad, and base design are optimized together to manage both peak force and impact duration.

Field owners and specifiers who request Act Global test data will receive complete deceleration curve data including both Gmax and HIC values from ISO 17025-accredited independent laboratories. This data is available through Act Global’s Test Report Center.

Frequently Asked Questions

What is a safe HIC value for a synthetic turf field?

ASTM F1936 and FIFA Quality standards both set the maximum acceptable HIC at 1,000. Fields producing HIC values below 700 are generally considered well within the safe range. Values between 700–1,000 are technically compliant but warrant monitoring, particularly as the field ages and infill compacts. Values above 1,000 indicate an unsafe surface under current standards.

Can a field pass g-max but fail HIC?

Yes. This is one of the most important practical implications of understanding the difference between the two metrics. A surface with a g-max of 175g, within FIFA’s 60–180g range, can still produce a HIC above 1,000 if the deceleration curve is broad enough. This is why both metrics should be specified and tested independently, not treated as interchangeable.

Is HIC tested separately from g-max?

No, both metrics are derived from the same drop test. The same missile impact produces the full deceleration curve from which both g-max and HIC are calculated. Requesting both metrics adds no additional testing cost or time, it simply requires that the laboratory report both values from the same test data.

How does infill type affect HIC?

Infill type and depth significantly affect the shape of the deceleration curve and therefore HIC values. Denser, less compressible infill materials tend to produce sharper, higher-peak curves, higher g-max and potentially higher HIC. More compressible infill materials produce broader, lower-peak curves, lower g-max and lower HIC. The interaction between infill, fiber, and shock pad determines the final curve shape, which is why system-level specification and testing is essential.

Should HIC be included in synthetic turf procurement specifications?

Yes. Any procurement specification for a synthetic turf athletic surface that references only g-maxis incomplete. Including HIC thresholds, at a minimum, ASTM F1936’s limit of 1,000, provides a more rigorous and defensible safety standard. Specifiers, architects, and facility managers who include both metrics in their procurement documents are applying current best practice in athletic surface safety specification.

Related Resources

What Makes Synthetic Turf Safe? A Science-Based Definition
Gmax Explained — Surface Hardness and Impact Attenuation
Rotational Resistance & Traction
Act Global Test Report Center

The content in this article reflects Act Global’s interpretation of publicly available independent test data, ASTM standards, FIFA Quality Program documentation, and peer-reviewed research on athletic surface safety. It is provided for educational purposes only and does not constitute medical, legal, or engineering advice. HIC thresholds cited reflect published standards as of the date of this article, refer to the relevant governing body for current certification requirements. Refer to original sources and accredited testing laboratories for complete methodology and findings.

Gmax is the most widely referenced safety metric in synthetic turf – and one of the most misunderstood. It appears in field specifications, certification requirements, and procurement documents across the industry, yet few field owners or specifiers can explain what it actually measures, why it matters, or why a field that passes at installation may not pass two years later.

This article explains g-max in plain technical terms: what it measures, how it is tested, what thresholds apply across different field standards, and what drives g-max values up over a field’s lifecycle. Understanding g-max is the first step toward specifying, procuring, and maintaining a synthetic turf field that performs safely throughout its service life — not just on installation day.

What g-max Measures

g-max measures the peak deceleration force transmitted to an object, in athletic surface testing, a standardized missile head, during a controlled impact onto the surface. It is expressed as a multiple of gravitational acceleration (g). A g-max of 100g means the surface transmitted a peak deceleration force 100 times greater than gravitational acceleration during the impact event.

Lower g-max values indicate better impact attenuation, the surface absorbed more energy before transmitting it upward. Higher g-max values indicate a harder surface that transmits more force to the athlete upon contact.

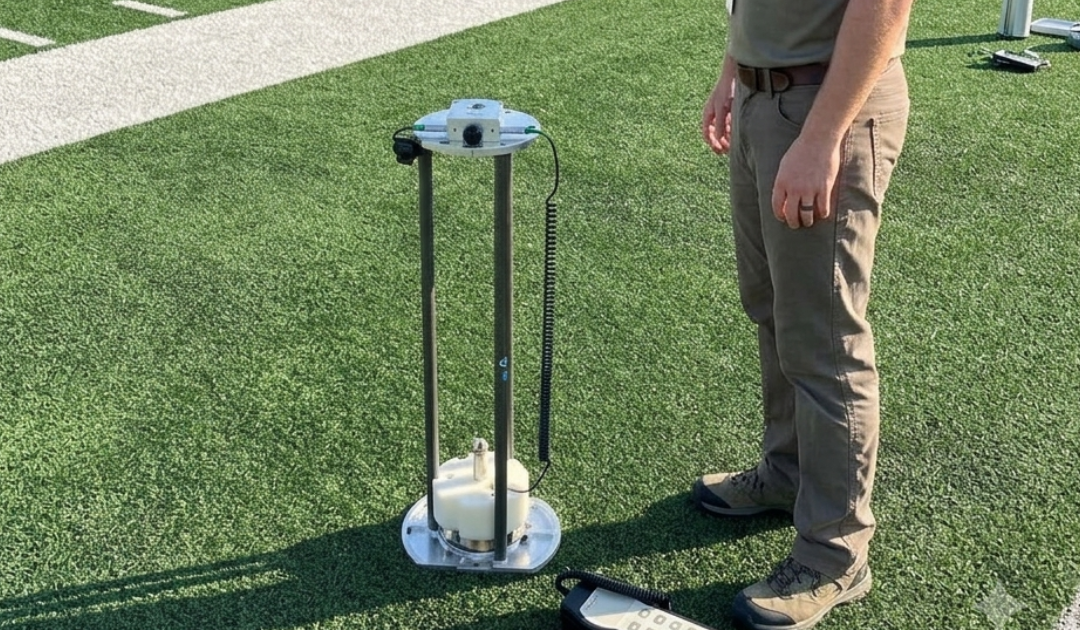

How g-max is Tested

g-max is measured using a standardized drop test protocol defined by ASTM F355 and EN 1177. A missile of defined mass and geometry is dropped from a specified height onto the surface. Accelerometers embedded in the missile record the deceleration profile throughout the impact event. The peak value of that deceleration curve is g-max.

Testing is performed by ISO 17025-accredited independent laboratories. Act Global uses Firefly Sports Testing, Labosport, and Sports Labs — the same laboratories that test Super Bowl fields and FIFA World Cup venues. Results from internal or manufacturer-conducted testing are not considered independently verified.

g-max Thresholds by Standard

Different governing bodies and standards organizations define acceptable g-max ranges for their specific applications. The following thresholds represent the most commonly referenced benchmarks in North American and international synthetic turf specification:

ASTM F1936 – General Athletic Surfaces

• Maximum g-max: 200g
• This is the baseline threshold for athletic surfaces in the United States. A surface exceeding 200g is considered unsafe for athletic use under ASTM standards.

FIFA Quality Program

• g-max range: 60–180g
• FIFA’s Quality Program establishes both a minimum and maximum g-max threshold. A surface below 60g is considered too soft, it may absorb energy in ways that affect ball behavior and athlete biomechanics. A surface above 180g approaches unsafe hardness levels.

NFL Field Standards

• The NFL does not publish a single universal g-max threshold. Instead, NFL fields are subject to independent testing at installation and ongoing monitoring throughout the season. Field performance data is tracked by the NFL and NFLPA as part of the league’s field safety initiative.

World Rugby

• g-max range: 35–200g for synthetic turf
• World Rugby’s thresholds are broader than FIFA’s, reflecting the different biomechanical demands of rugby vs. football.

Why g-max Changes Over Time

g-max at installation is not g-max at year three. This is the most operationally critical fact about this metric, and the one most commonly overlooked in procurement and maintenance planning.

Several mechanisms drive g-max upward over a field’s service life:

Infill Compaction

As infill particles, crumb rubber, sand, cork, or organic alternatives, experience repeated loading from athletic activity, they compact. Compacted infill has less capacity to absorb impact energy, which transmits more force to the athlete and increases g-max. High-traffic zones compact significantly faster than low-traffic areas, creating localized zones of elevated Gmax even when the overall field average remains within threshold.

Fiber Flattening

Synthetic turf fibers experience progressive flattening under repeated use and UV exposure. Flattened fibers contribute less to impact energy absorption, effectively reducing the cushioning contribution of the fiber layer and increasing the load on infill and shock pad.

Base Settlement

Base materials, crushed stone, recycled asphalt, or engineered base systems, can settle unevenly over time, particularly in areas subject to heavy vehicle traffic or poor drainage. Base settlement affects surface stiffness and can elevate g-max in localized areas independent of fiber or infill condition.

Gmax and Lifecycle Management

A field that passes g-max thresholds at installation requires active lifecycle management to maintain those results. Industry best practice includes:

• Annual independent g-max testing by an ISO 17025-accredited laboratory
• Zone-by-zone measurement, not just a single field average, to identify localized high-Gmax areas
• Infill decompaction and redistribution as part of a structured maintenance program
• Shock pad inspection at the time of fiber replacement to assess whether pad performance has degraded

Fields without a structured maintenance and retesting program cannot reliably claim ongoing safety compliance regardless of their installation test results.

Act Global Perspective

Act Global specifies g-max as a system-level design target, not a post-installation compliance checkbox. Every Act Global sports turf system is engineered with fiber density, infill type, infill depth, shock pad specification, and base design selected in combination to achieve and maintain target g-max values throughout the field’s service life, not just at installation.

Published g-max test results for Act Global systems are conducted exclusively by ISO 17025-accredited independent laboratories, Firefly Sports Testing, Labosport, and Sports Labs. These results are available in Act Global’s Test Report Center.

Act Global systems have been independently tested and installed at NFL venues and in 90+ countries across climates and use intensities. The consistency of g-max results across those installations reflects system-level engineering, not single-component specification.

Frequently Asked Questions

What is a good Gmax value for a synthetic turf field?

For most synthetic turf applications, a g-maxbetween 80–150g represents a well-performing surface, firm enough for predictable athletic movement, soft enough to attenuate impact effectively. FIFA Quality standards require 60–180g. ASTM F1936 sets the absolute maximum at 200g. Fields consistently testing below 80g may be over-cushioned, which can affect ball behavior and traction consistency.

How often should g-max be tested?

 Industry best practice is annual independent g-max testing by an ISO 17025-accredited laboratory. High-use fields, those exceeding 1,000 hours of use per year  should consider biannual testing. Zone-by-zone measurement is strongly recommended over single-point or averaged field results, as high-traffic areas compact significantly faster than low-use zones.

Can g-max be improved on an existing field without full replacement?

Yes, in many cases. If elevated g-max is caused by infill compaction, professional infill decompaction and redistribution can restore g-max values to acceptable ranges. If the shock pad has degraded or the fiber is severely flattened, more extensive remediation may be required. An independent assessment by an accredited laboratory is the correct first step before any remediation work.

Does a higher shock pad thickness always mean lower g-max?

Not necessarily. Shock pad performance depends on material type, density, and thickness, not thickness alone. A thin, high-performance shock pad can outperform a thick, low-density pad on g-max attenuation. Shock pad specification should be based on system-level testing data, not pad thickness as a standalone specification criterion.

Is Gmax the same as HIC?

No. g-max measures peak deceleration force — the highest point on the impact curve. HIC (Head Injury Criterion) is calculated from the full shape of that curve over time and is considered a more comprehensive indicator of traumatic brain injury risk. Both metrics are measured in the same drop test. A surface can have an acceptable g-max and still produce a concerning HIC value depending on the shape of the deceleration curve.

Related Resources

• What Makes Synthetic Turf Safe? A Science-Based Definition
• HIC Explained — Head Injury Criterion for Field Owners
• Rotational Resistance & Traction — Lower-Extremity Injury Risk
• Act Global Test Report Center

The content in this article reflects Act Global’s interpretation of publicly available independent test data, ASTM standards, FIFA Quality Program documentation, and peer-reviewed research on synthetic turf surface performance. It is provided for educational purposes only and does not constitute medical, legal, or engineering advice. Gmax thresholds cited reflect published standards as of the date of this article — refer to the relevant governing body for current certification requirements. Refer to original sources and accredited testing laboratories for complete methodology and findings.

Safety in synthetic turf is not a marketing claim, it is a measurable, testable, and manageable system-level outcome. It depends on the interaction of multiple variables: fiber type and density, infill material and compaction, shock pad specification, backing system, base construction, drainage, installation quality, maintenance cadence, footwear, sport type, and field age.

No single component determines whether a synthetic turf field is safe. A fiber system with excellent laboratory results can underperform in the field if the infill is improperly maintained or the base is inadequately drained. Safety is engineered across the entire system, and verified through independent testing at installation and throughout the field’s lifecycle.

The Five Measurable Safety Parameters

Synthetic turf safety is defined by five independently testable parameters. Each is measured by ISO 17025-accredited laboratories using standardized ASTM and EN/DIN protocols.

1. Gmax – Impact Attenuation

Gmax measures the peak deceleration force transmitted to a player’s head during a fall onto the surface. It is expressed as a multiple of gravitational acceleration (g). Lower Gmax values indicate better impact attenuation — the surface absorbs more energy before transmitting it to the athlete.

Industry reference thresholds:

• ASTM F1936: Gmax ≤ 200g required for athletic surfaces
• FIFA Quality: Gmax between 60–180g
• NFL field standards: Gmax consistently monitored at installation and annually

Gmax is not static. It increases as infill compacts over time and as base materials settle. A field that passes at installation may exceed safe thresholds within 2–3 years without proper maintenance and retesting.

2. HIC – Head Injury Criterion

HIC (Head Injury Criterion) measures the probability of traumatic brain injury resulting from a fall onto the surface. It is calculated from the Gmax force-time curve and is considered a more comprehensive indicator of head impact risk than Gmax alone.

HIC reference thresholds:

• ASTM F1936: HIC ≤ 1000 required
• FIFA Quality Pro: HIC ≤ 1000
• Critical fall height testing: determines maximum safe fall height for a given surface

HIC is particularly relevant for multi-sport fields where athletes of varying sizes and ages use the same surface, and for fields that double as play areas for younger children.

3. Rotational Resistance – Traction and Release

Rotational resistance measures the torque required to rotate a standardized studded boot on the surface. It defines the balance between sufficient traction for athletic performance and safe release to reduce lower-extremity injury risk, particularly ACL and ankle injuries.

Reference thresholds:

• FIFA Quality: 25–50 Nm
• World Rugby: 25–50 Nm
• EN 15301-1: Standard test protocol

Rotational resistance is directly affected by infill type, infill depth, fiber density, and field age. It requires lifecycle monitoring, not just initial certification testing.

4. Vertical Deformation – Surface Stability

Vertical deformation measures how far the surface depresses under a standardized vertical load. It defines foot stability and fatigue resistance, surfaces that deform excessively increase energy expenditure and reduce biomechanical efficiency.

Reference thresholds:

• FIFA Quality: 4–11mm
• EN 12235: Standard test protocol

Fields with inadequate vertical deformation, either too stiff or too soft, compromise both safety and performance.

5. Infill Compaction – The Hidden Variable

Infill compaction is the most commonly overlooked safety variable in synthetic turf lifecycle management. As infill particles compact under repeated use, Gmax increases, rotational resistance changes, and vertical deformation decreases. High-traffic zones, goal mouths, center circles, hash marks, compact significantly faster than low-traffic areas.

A field with passing safety metrics at installation can develop localized unsafe zones within 18–24 months without a structured maintenance program that includes infill decompaction and redistribution.

Why Safety Is a System – Not a Specification

Each of the five parameters above is influenced by every other component of the turf system. Specifying a high-performance fiber without matching infill selection, shock pad specification, and base design does not produce a safe field, it produces an untested combination of components.

Act Global’s approach to safety begins with system engineering: fiber, infill, pad, backing, base, and drainage are specified together, tested together, and maintained together. Independent test data from ISO 17025-accredited laboratories — Firefly Sports Testing, Labosport, and Sports Labs,verifies performance at installation. Lifecycle retesting verifies that safety is maintained throughout the field’s service life.

Act Global Perspective

Act Global designs turf systems around measurable player-surface interaction, not component specifications in isolation. Every Act Global system is specified with all five safety parameters as design targets, not compliance checkboxes.

Our published test data from Firefly Sports Testing, Labosport, and Sports Labs covers Gmax, HIC, rotational resistance, vertical deformation, and infill performance across multiple system configurations. We publish results from independent laboratories, not internal testing, because institutional credibility requires third-party verification.

Act Global systems have been installed and independently tested at NFL venues and in 90+ countries. The consistency of those results across climates, use levels, and sport types is the proof that system-level engineering produces predictable, verifiable safety outcomes.

Frequently Asked Questions

What is the most important safety metric for synthetic turf?

No single metric defines safety. Gmax and HIC measure impact attenuation, rotational resistance measures lower-extremity injury risk, and vertical deformation measures stability. All five parameters must be within acceptable ranges simultaneously, and must be maintained throughout the field’s lifecycle, not just at installation.

How often should synthetic turf be retested for safety?

Industry best practice is annual independent testing for Gmax and HIC, with rotational resistance and infill depth measurements every 6–12 months depending on use intensity. High-traffic zones should be measured more frequently. A structured maintenance program that includes infill decompaction and redistribution is essential between test cycles.

Does synthetic turf become less safe over time?

Yes, if not properly maintained. Infill compaction increases Gmax and reduces rotational resistance values over time. Fields that passed safety thresholds at installation can develop unsafe zones within 18–24 months under heavy use without maintenance intervention. Safety is a managed outcome, not a permanent property of the installed system.

How is synthetic turf safety tested independently?

ISO 17025-accredited laboratories use standardized ASTM and EN/DIN protocols to measure each safety parameter. Act Global uses Firefly Sports Testing, Labosport, and Sports Labs, the same laboratories that test Super Bowl fields and FIFA World Cup venues. Results are published with plain-language summaries in Act Global’s Test Report Center.

Related Resources

• Gmax Explained — Surface Hardness and Impact Attenuation
• HIC Explained — Head Injury Criterion for Field Owners
• Act Global Test Report Center

The content in this article reflects Act Global’s interpretation of publicly available independent test data, ASTM standards, and peer-reviewed research. It is provided for educational purposes only and does not constitute medical, legal, or engineering advice. Refer to original sources and accredited testing laboratories for complete methodology and findings.
